Garmin Striker Vivid Fishfinder

The Garmin Striker Vivid Fishfinders are available in various sizes and feature clear, high-contrast images. Easier than ever to see fish and structure with the best-in-class Garmin CHIRP sonar as well as CHIRP ClearVu on the 4cv, 5cv, and 7cv units that feature the GT20-TM Transducer. Experience the crystal clear CHIRP SideVu scanning sonar on the 7sv and 9sv units with the GT52HW-TM. The detailed and sensitive GPS features are built-in with Quickdraw Contours software. This allows you to track your routes and mark accurate waypoints for all your honey holes along the 1ft contours. With the Garmin Striker Vivid lineup, you get the most detail and the maximum performance from each unit, allowing you to put more fish in the boat.

Features:

• Easy-to-use fishfinder with new vivid scanning sonar color palettes to easily distinguish fish and structure; tilt/swivel bail mount bracket included

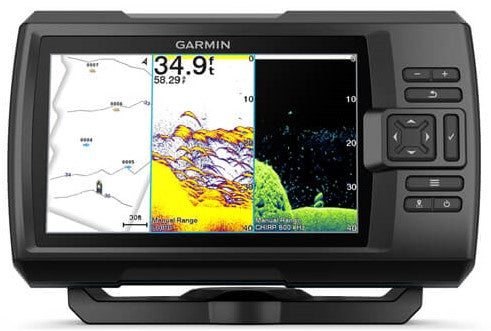

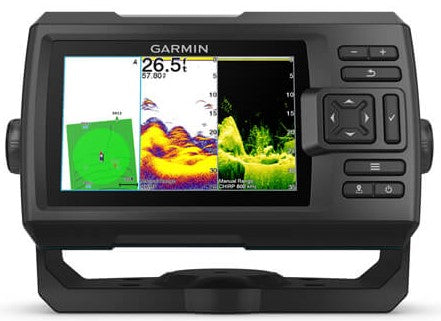

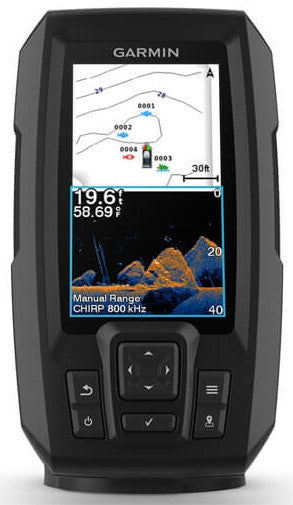

• Includes a GT20 transducer for built-in Garmin CHIRP traditional sonar and CHIRP ClearVü scanning sonar for 4cv, 5cv, and 7cv units

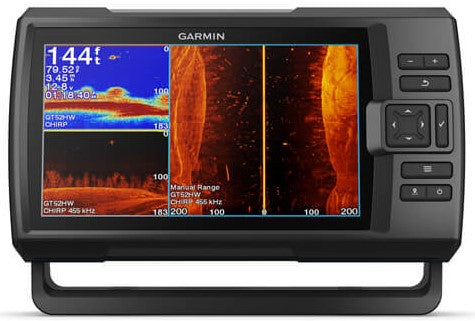

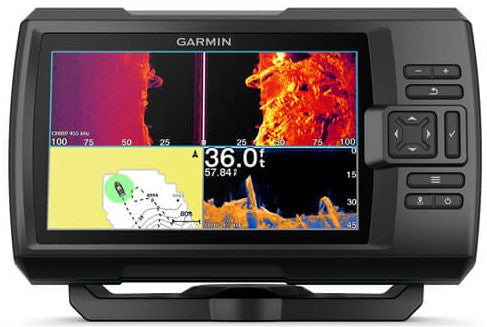

• Includes a GT52 transducer for built-in Garmin CHIRP traditional sonar and CHIRP ClearVü and CHIRP SideVü scanning sonars for 7sv and 9sv units
• High-sensitivity GPS to mark waypoints, create routes, and view your boat's speed
• Includes built-in Quickdraw Contours mapping
• The 7sv and 9sv units provide Wi-Fi connectivity, allowing you to connect to the ActiveCaptain app to transfer waypoints, receive smart notifications (including software update notifications), and access the Garmin Quickdraw Community

GT20-TM

• Transom Mount DownVü 500W (CHIRP 455/800 kHz) Traditional 500 W (77/200 kHz) Transducer with Temp - 4-Pin
• Get clear sonar images of objects, structures, and passing fish with this all-in-one 4-pin transducer.
• This 20' transducer cable with built-in fast response temperature sensor has a power rating of 500 W; a depth of 1,900 ft (traditional) and 750 ft (DownVü); an operating frequency of 77/200 kHz (traditional) and 455 kHz (DownVü); and a 0 to 70 transom angle.
• The transducer comes with transom and trolling motor mounts and installation instructions. Follow the instructions carefully to avoid damaging your boat.

GT52HW-TM

• Plastic, TM or Trolling Motor Transducer, High Wide CHIRP/CHIRP DownVü/SideVü - 455/800kHz, 500W, 12-Pin
• The GT52HW-TM transducer is perfect for freshwater fishermen who want CHIRP traditional sonar and CHIRP DownVü and CHIRP SideVü scanning sonar. This transom-mount transducer consistently displays clear and crisp fish arches with superior target separation and a clear definition of structure below and to the side of the boat.
• The 12-pin transducer features high, wide band CHIRP traditional sonar (150-240 kHz) and has a power rating of 250 W. The CHIRP DownVü and SideVü (455/800 kHz) elements have a power rating of 500 W each (1,500 W total).
• Due to its compact size, GT52HW-TM is ideal for mounting to a trolling motor. For installation, follow the included instructions carefully to avoid damaging your boat.

In the Box 4cv, 5cv & 7cv:

• STRIKER Vivid fishfinder
• GT20-TM transducer
• Power/data cable
• Tilt/swivel mount
• Hardware
• Garmin bumper sticker
• Documentation

In the Box 7sv & 9sv:

• STRIKER Vivid fishfinder
• GT52HW-TM transducer
• Power/data cable
• 12-pin to dual 4-pin transducer adapter cable
• Tilt/swivel mount
• Hardware
• Garmin bumper sticker
• Documentation
